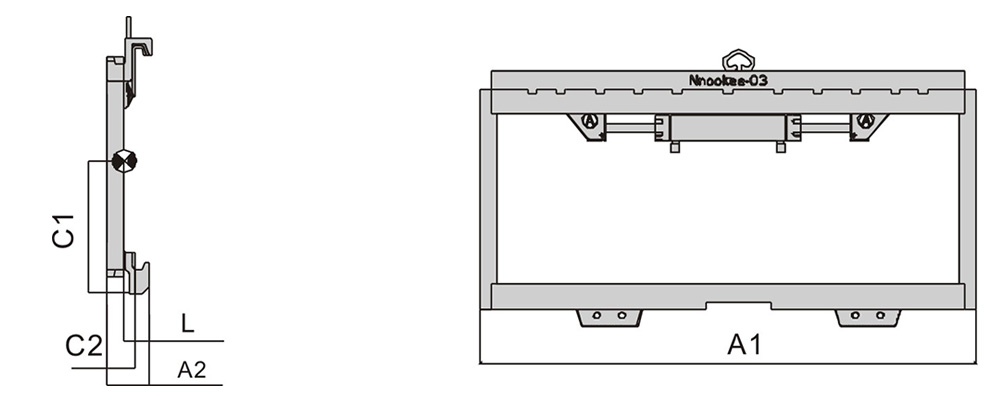

Model	Carrying Capacity	Frame dimension	working stroke	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Vertical Center of Gravity
	(Kg)	A1×A2(mm)	(mm)		(Kg)	L(mm)	C2(mm)	C1(mm)
CEM15B-C77	1500	1040×98	±100	2	70	98	26	383
CEM25B-C98	2500	1040×98	±100	2	70	98	26	256
CEM25B-C100	2500	1040×98	±100	2	70	98	26	256
CEM25B-C102	2500	1040×98	±100	2	70	98	26	256
CEM25B-C104	2500	1040×98	±100	2	70	98	26	256
CEM25B-C110	2500	1040×98	±100	2	70	98	26	256
CEM30B-C100	3000	1150×105	±100	3	90	105	28	305
CEM30B-C106	3000	1150×105	±100	3	90	105	29	305
CEM30B-C107	3000	1150×105	±100	3	90	105	29	305
CEM30B-C110	3000	1150×105	±100	3	90	105	29	305
CEM30B-C115	3000	1150×105	±100	3	90	105	29	305
CEM40B-C129	4000	1290×115	±100	3	104	115	30	308
CEM50B-C160	5000	1600×150	±100	4	195	150	65	450
CEM60B-C180	6000	1800×150	±100	4	215	150	65	450
CEM70B-C183	7000	1830×150	±100	4	226	150	65	450

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.Matching this attachment requires one more oil circuit for the forklift.
3.B stands for horizontal,and C, the third generation product.
4.The various types listed above are the common products, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
