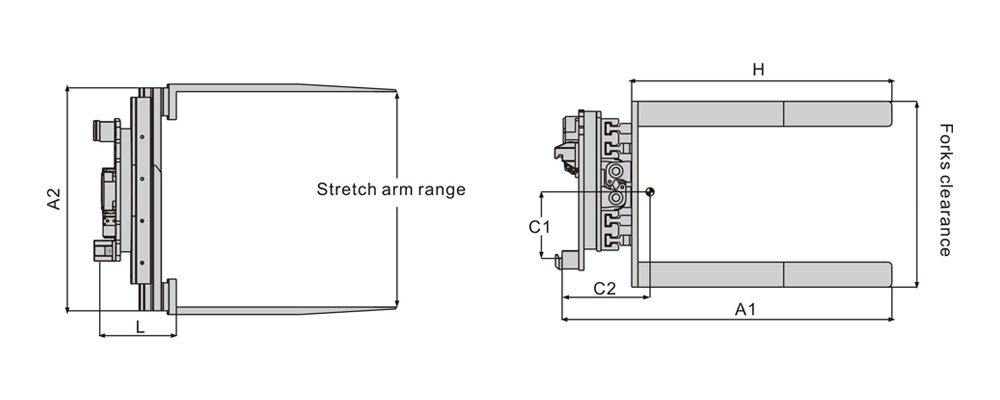

Model	Carrying Capacity	Frame dimension	Length of fork	Opening range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Verticla Center Gravity
	Kg	A1×A2(mm)	(mm)	(mm)		Kg	L(mm)	C2(mm)	C1(mm)
RDM15A-G17B	1500	1490×1000	1050	560-1760	2	895	408	314	259
RDM15A-G19B	1500	1490×1100	1050	620-1900	2	912	408	314	259
RDM15A-G19C	1500	1640×1100	1200	620-1900	2/3	927	408	314	261
RDM15A-G20B	1500	1490×1200	1050	680-2000	2/3	928	408	314	261
RDM15A-G20C	1500	1640×1200	1200	680-2000	2/3	943	408	314	261
RDM20A-G19C	2000	1643×1100	1200	620-1900	3	937	409.5	316	261
RDM20A-G20C	2000	1643×1200	1200	680-2000	3	943	409.5	316	261
RDM20A-G21F	2000	1793×1200	1350	730-2300	3	955	409.5	322	265

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and rotation are added with 1 more oil circuit respectively.
3.A stands for standard, G, revolving four-fork,and B,C and F, fork length.
4.The various types listed above are the common products and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
