It can realize the safe and efficient carrying and stacking of various tires without the use of pallets, and greatly reduces work intensity, saves large amount of storage room and improves work efficiency.
Model
|
Carrying Capacity
|

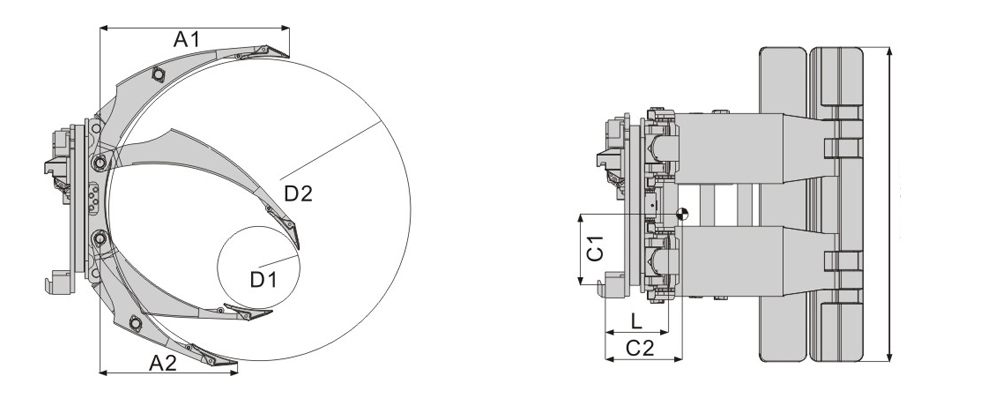

Frame dimension
|
Opening range
|
Installation Grade
|
Self-weight
|
Load Loss Distance
|
Horizontal Center of Gravity
|
Verticla Center Gravity
|
|
Kg
|
A1×A2(mm)
|
(mm)
|
|
Kg
|
L(mm)
|
C2(mm)
|
C1(mm)
|
TSC15A-G13C
|
1500
|
890-606
|
580-1350
|
2
|
800
|
246
|
287
|
353
|
TSC15A-G13F
|
1500
|
890-606
|
580-1350
|
2
|
840
|
246
|
287
|
354
|
TSC15B-G13C
|
1500
|
890-606
|
250-1350
|
2
|
820
|
246
|
287
|
353
|
TSC15B-G13F
|
1500
|
890-606
|
250-1350
|
2
|
860
|
246
|
287
|
354
|
TSC20A-G13C
|
2000
|
890-606
|
580-1350
|
2/3
|
818
|
248
|
328
|
358
|
TSC20A-G13F
|
2000
|
890-606
|
580-1350
|
2/3
|
858
|
248
|
328
|
359
|
TSC20B-G13C
|
2000
|
890-606
|
250-1350
|
2/3
|
838
|
248
|
328
|
258
|
TSC20B-G13F
|
2000
|
890-606
|
250-1350
|
2/3
|
878
|
248
|
328
|
259
|
TSC20A-G16C
|
2000
|
952-576
|
600-1600
|
2/3
|
837
|
252
|
328
|
258
|
TSC20A-G16F
|
2000
|
952-576
|
600-1600
|
2/3
|
877
|
252
|
328
|
259
|
TSC20B-G16C
|
2000
|
952-576
|
300-1600
|
2/3
|
857
|
252
|
328
|
258
|
TSC20B-G16F
|
2000
|
952-576
|
300-1600
|
2/3
|
897
|
252
|
328
|
259
|
Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and rotation are added with 1 more oil circuit each respectively.
3.A stands for fixed short arm, B, adjustable short arm, G, standard, C ,clamping plank size 1100mm, and F clamping plank size 1500mm.
4.The various types listed above are the common products, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
