Product Name: Bale Clamps D-Series

Bale Clamp

• Simple composite structure, high strength, light weight and being easy for maintenance;
• The inside of the splint is equipped with ribs to increase the friction coefficient, so as to easily clamp soft bales.
• Safety valves are equipped to prevent goods from dropping when the oil circuit releases pressure.
• The aluminum alloy frame reduces the dead weight of a product and increases the service life of the forklift..
• The selection of wearing strip of German Bayer’s material effectively prevents the guide axis and guide slot from abrasion due to sliding.
• The built-in side shifter increases lateral displacement, easy to operate.

Product Parameters

Inquiry

Product Parameters

Bale clamps cam be used to handle different types of bale goods such as rags,waste paper，cotton,wool,hay,industrial scraps etc,and can achieve high-effective and cost-efficient handling and stacking without a tray

軟包夾,叉車軟包夾,廢紙搬運車,叉車屬具軟包夾，叉車軟包夾，軟包夾叉車，軟包夾安裝，叉車用的軟包夾

軟包夾,叉車軟包夾,廢紙搬運車,叉車屬具軟包夾，叉車軟包夾，軟包夾叉車，軟包夾安裝，叉車用的軟包夾

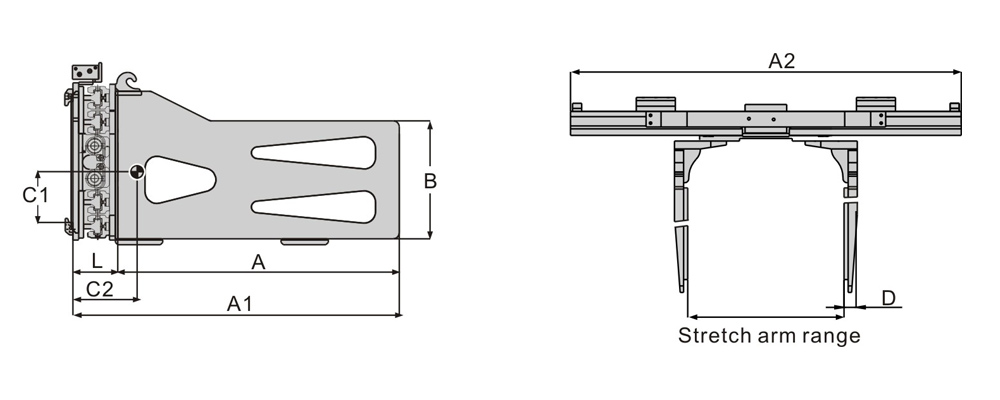

Model	Carrying Capacity	Frame dimension	Size of clamp size	Opening range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Verticla Center Gravity
	(kg)	A1×A2(mm)	A×B(mm)	(mm)		(kg)	L(mm)	C1(mm)	C2(mm)
SCM30A-D22C	3000	1380×1500	1200×490	600-2200	3	1037	167	227	318
SCM30B-D22C	3000	1380×1500	1200×490	600-2200	3	1037	167	227	318
SCM30A-D23C	3000	1380×1600	1200×490	525-2300	3	1065	167	330	321
SCM30B-D23C	3000	1380×1600	1200×490	525-2300	3	1065	167	330	321
SCM35A-D22C	3500	1380×1500	1200×490	600-2200	3/4	1088	176	229	320
SCM35B-D22C	3500	1380×1500	1200×490	600-2200	3/4	1088	176	229	320
SCM35B-D23C	3500	1380×1600	1200×490	525-2300	3/4	1095	176	232	326
SCM35B-D24C	3500	1380×1600	1200×490	580-2400	3/4	1103	176	235	330
SCM40B-D22C	4000	1380×1500	1200×490	600-2200	4	1128	180	384	622
SCM40B-D23C	4000	1380×1600	1200×490	525-2300	4	1142	180	388	644
SCM40B-D24C	4000	1380×1600	1200×490	580-2400	4	1172	180	388	645
SCM50B-D22E	5000	1530×1500	1350×490	600-2200	4	1178	182	389	626
SCM50B-D23E	5000	1530×1600	1350×490	525-2300	4	1192	182	394	628
SCM50B-D24E	5000	1530×1600	1350×490	580-2400	4	1212	182	394	628
SCM60B-D22F	6000	1583×1500	1400×490	600-2200	4	1203	182	391	631
SCM60B-D23F	6000	1583×1600	1400×490	525-2300	4	1215	182	397	633
SCM60B-D24F	6000	1583×1600	1400×490	580-2400	4	1228	182	397	634

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and side shifting are added with one more oil circuit respectively.
3.A stands for standard, B, side shifting, D, the fourth generation product, and C, E, F, clamp arm length.
4.The various types listed above are the common products of Sino-German Nnookee, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
