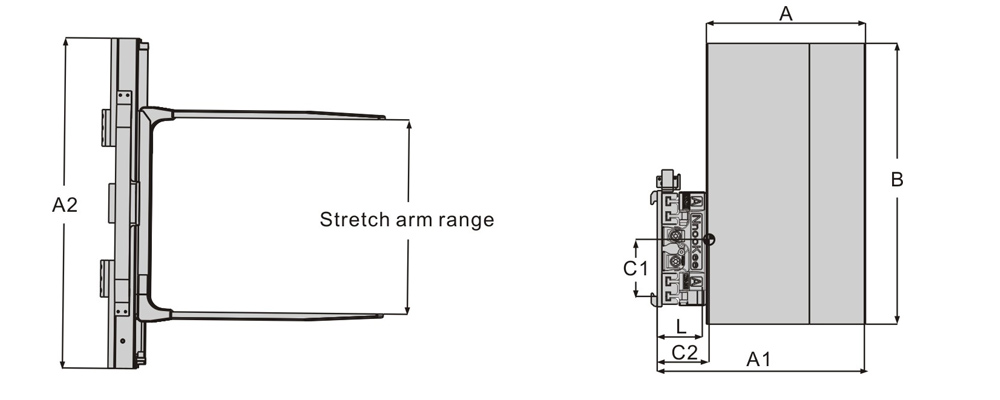

Model	Carrying Capacity	Frame dimension	Size of clamp size	Opening range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Verticla Center Gravity
	Kg	A1×A2(mm)	A×B(mm)	(mm)		Kg	L(mm)	C1(mm)	C2(mm)
BCM08B-J15G	800	1020×1000	850×1500	510-1500	2	600	165	280	239
BCM08B-J18Y	800	1120×1200	950×1500	590-1800	2	625	168	284	239
BCM10B-J15G	1000	1020×1000	850×1500	510-1500	2	635	165	280	239
BCM10B-J18Y	1000	1120×1200	950×1500	590-1800	2	660	168	284	239
BCM12B-J15G	1200	1020×1000	850×1500	510-1500	2	680	165	280	239
BCM12B-J18Y	1200	1120×1200	950×1500	590-1800	2	710	168	284	239

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and side shifting are added with one more oil circuit respectively.
3.B stands for side shifting, J, the sixth generation product, and  F and Y, clamp arm size.
4.The various types listed above are the common products of Sino-German Nnookee, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
