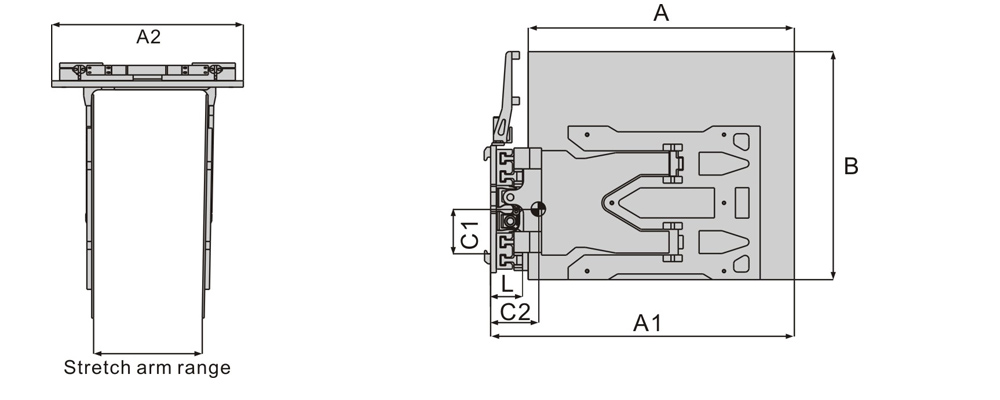

Model	Carrying Capacity	Frame dimension	Size of Clamp Size	Opening range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Vertical Center of Gravity
	(Kg)	A1×A2(mm)	A×B(mm)	(mm)		(Kg)	L(mm)	C1(mm)	C2(mm)
BCM10A-E16A	1000	998×1000	800×1000	470-1600	2	620	130	348	480
BCM10A-E19A	1000	998×1200	800×1000	580-1950	2	665	130	345	480
BCM10B-E16A	1000	998×1000	800×1000	470-1600	2	620	130	348	480
BCM10B-E19A	1000	998×1200	800×1000	580-1950	2	665	130	345	480
BCM15A-E16B	1500	1198×1000	1000×1200	470-1600	2/3	680	147	357	515
BCM15A-E19B	1500	1198×1200	1000×1200	580-1950	2/3	700	147	313	515
BCM15B-E16B	1500	1198×1000	1000×1200	470-1600	2/3	680	147	357	515
BCM15B-E19B	1500	1198×1200	1000×1200	580-1950	2/3	700	147	313	515
BCM15A-E16C	1500	1398×1000	1200×1200	470-1600	2/3	725	147	375	515
BCM15A-E19C	1500	1398×1200	1200×1200	580-1950	2/3	745	147	361	515
BCM15B-E16C	1500	1398×1000	1200×1200	470-1600	2/3	725	147	375	515
BCM15B-E19C	1500	1398×1200	1200×1200	580-1950	2/3	745	147	361	515
BCM15B-E19F	1500	1598×1200	1400×1200	580-1950	2/3	768	148	361	516
BCM15B-E21F	1500	1598×1200	1400×1200	625-2100	2/3	785	149	363	516
BCM20A-E16B	2000	1198×1000	1000×1200	470-1600	3	715	175	357	518
BCM20A-E19B	2000	1198×1200	1000×1200	580-1950	3	735	175	313	518
BCM20B-E16B	2000	1198×1000	1000×1200	470-1600	3	715	175	357	518
BCM20B-E19B	2000	1198×1200	1000×1200	580-1950	3	735	175	313	518
BCM20A-E16C	2000	1398×1000	1200×1200	470-1600	3	750	175	375	518
BCM20A-E19C	2000	1398×1200	1200×1200	580-1950	3	770	175	361	518
BCM20B-E16C	2000	1398×1000	1200×1200	470-1600	3	750	175	375	518
BCM20B-E19C	2000	1398×1200	1200×1200	580-1950	3	770	175	361	518

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and side shifting are added with one more oil circuit respectively.
3.A stands for standard, B, side,shifting, E, the fifth generation product, and A, B, C and F, clamp arm size.
4.The various types listed above are the common products of Sino-German Nnookee, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
