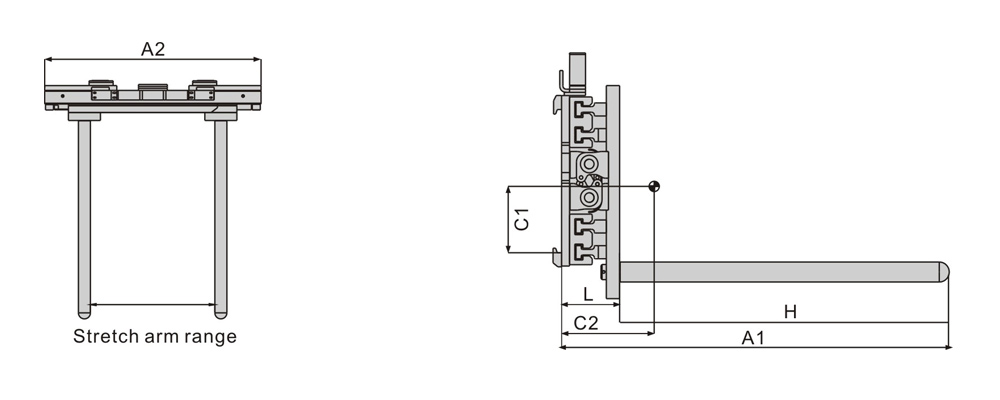

Model	Carrying Capacity	Frame dimension	Bar Arm Length	Opening range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Verticla Center Gravity
	Kg	A1×A2(mm)		(mm)		Kg	L(mm)	C2(mm)	C1(mm)
SRC10B-E13A	1000	916×1000	700	340-1380	2	497	216	128	244
SRC10B-E15C	1000	1016×1000	800	420-1550	2	510	216	137	240
SRC10B-E17F	1000	1116×1000	900	500-1700	2	511	216	146	238
SRC10B-E18H	1000	1216×1200	1000	450-1800	2	530	216	156	237
SRC15B-E15F	1500	1118×1000	900	420-1550	2/3	521	218	146	238
SRC15B-E18H	1500	1218×1200	1000	450-1800	2/3	545	218	156	237
SRC20B-E15F	2000	1118×1000	900	420-1550	3	540	218	146	238
SRC20B-E18H	2000	1218×1200	1000	450-1800	3	565	218	156	237

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and side shifting are added with one more oil circuit respectively.
3.B stands for side shifting, E, the fifth generation product, and A, C, F and H, bar length.
4.The various types listed above are the common products of Sino-German Nnookee, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
